product description:

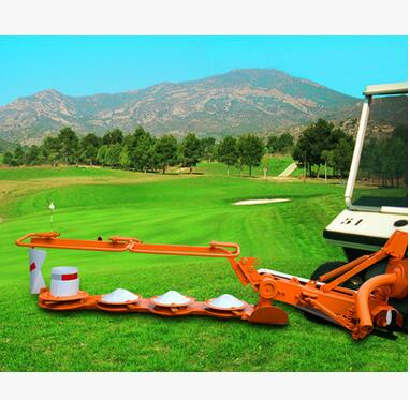

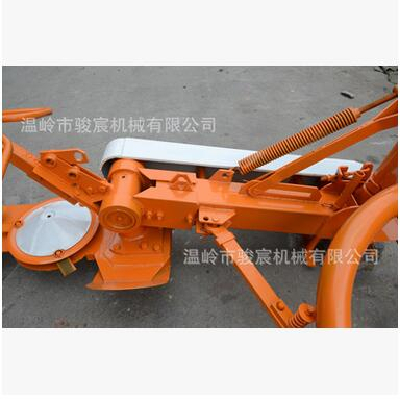

Ma Cedel GDX-1.9 rotary mower (KPP-1.9), mainly used for various types of forage harvesting. Using a tractor mower connected to the rear suspension traction frame to the power output shaft driven job. The machine has four high-speed rotating cutter, cutter mounted on each of the three blades, high-speed operation up to 1-2 hectares per hour, high productivity. The cutting machine four rotary cutter, by a rubber belt drive, making it a simple mechanical structure, good stability, low failure rate, low maintenance costs. To overcome the mechanical vibration hexagonal shaft, bevel gear drives produced and damage. As a result of the suspension spring and the lower rotating belt, knife low beam, easy to lift, can cut close to the ground, low-cut stubble, while the surface has good profiling capability. Cutting blade face big obstacles can be beaten back, to avoid damage to the blade. Rotary mower to rely on the power of the turntable, the grass in the middle centralized location for easy collection.

Reasonable structure, simple and compact, reliable, adjustment and maintenance extremely simple. The model has many years of experience in the European and Central Asian countries, the praise by the user.

Instructions for use:

1, the tractor and the mower connected, distributor adjust to working condition. Tractor hydraulic suspension drops to Low, the cylinder mower should be suspended.

2, let the machine idle before harvest 1 hour, 20 minutes low speed, 20 minutes medium speed, high speed 20 minutes, one hour after the shutdown operation, the separation power output shaft.

Check: a check that all screws connecting portion. Second bearing fever should not be, the same rotation check box housing should not be the hybrid fever. Three checks adjust drive belt. It recognizes that each member is working properly, bearings and miscellaneous tank has enough oil, cutting table can be a normal and stable work, idling no problem, come down to earth to harvest.

3, the new machine for the first time to harvest the fields, check all the screws with a torque wrench to work an hour later, focused on checking the fixed fixed blade and rotary cutter protection devices.

4, the maximum width of the mower should harvest, try to make the tractor closest to pasture. After cutting table when an obstacle, should enhance the tractor hydraulic suspension system.

5, on a flat surface, and speeds up to 15 km / h, uneven ground slow down.

How to care:

1, air compressor blow mower weeds, dirt.

2, cleaning hydraulic, crushing blade, rear traction frame pin, universal drive shaft spline part

3, protect against rust, wipe the butter in a hydraulic cylinder, crushing blade, rear traction frame pin, universal shaft spline part of the hydraulic cylinder with a wax paper bag on

4. Remove the quadruple band, remove grease storage

5, unloading loose hexagonal belt tensioning device, you need to remove the locking bolt 2, the tensioning device 1 shifts back a hole, wrap the lock bolt (Figure X) 2

6. Remove the high pressure tubing, pour the liquid and clean, with a small, well covered the outside clean, coated with talcum powder storage

7, cleaning grease on the gear unit, clean diesel

8, the mower on supports, from the sun and rain is stored in the field.
