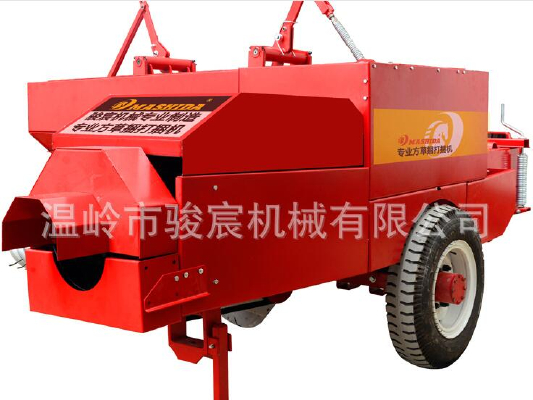

9YFQ series automatic pickup baler rural surplus straw and forage, such as corn stalks, straw, aspartate and other baling molding, primarily as pastoral reserve feed, forage while addressing the storage and transport problems. The equipment is mainly composed pickup, bundling mechanism, baling chamber, the compression piston, powertrain and chassis and other components. The equipment consists of a tractor pulling a straw across the front carried away match 35-50 horsepower power from the tractor power shaft as output power, automatic picking, automatic feeding, automatic balers, automatic Qiesheng, and can be adjusted by means of to change the density bale bale automatic bale discharge processes once completed, the outgoing bale lingers, not messy, and lined up on the ground, using the "n-pull" type of original balers general They are based on "side pull" type, the device run more smoothly pick up cleaner, greatly pricey efficiency and save labor costs. pick-up width of 1.9 meters and uses a flat spring, grass strips reduce leakage loss of the pick-up pick up in picking up the hay when reducing the lifting height, so no messy hay, flowers and leaves can reduce rub off, especially for the more important for alfalfa. High efficiency, the pick-up balers 5-7 acres per hour, and can combine with and supporting the use of straw briquetting machine. Hay bale wet grass can be molded to save transportation costs, increased space reserves. Only one operation, the pick-up, bundling, tying one piece.

Technical Parameters:

Baling chamber cross-sectional area (360 × 460) mm

Pickup pickup working width 1760㎜

Tine and tine bar number 4, 40

Feeding structure type Crank - Rocker Style

Hey burglary volume 0.2250m3

Working piston speed (reciprocating frequency) of 70 to 110 beats / min

Working stroke length of 700 mm

Bundled mechanism (rope) tie Number 2 sets

Twine tank capacity Volume 5

Supporting the tractor PTO shaft speed 540r / min

Power (1 kilowatt = 1.36 hp) 35kw

Baler Dimensions (L × W × H) (4100 × 2550 × 1860) mm

Weight 1700㎏
